Redefining High-Rate Performance

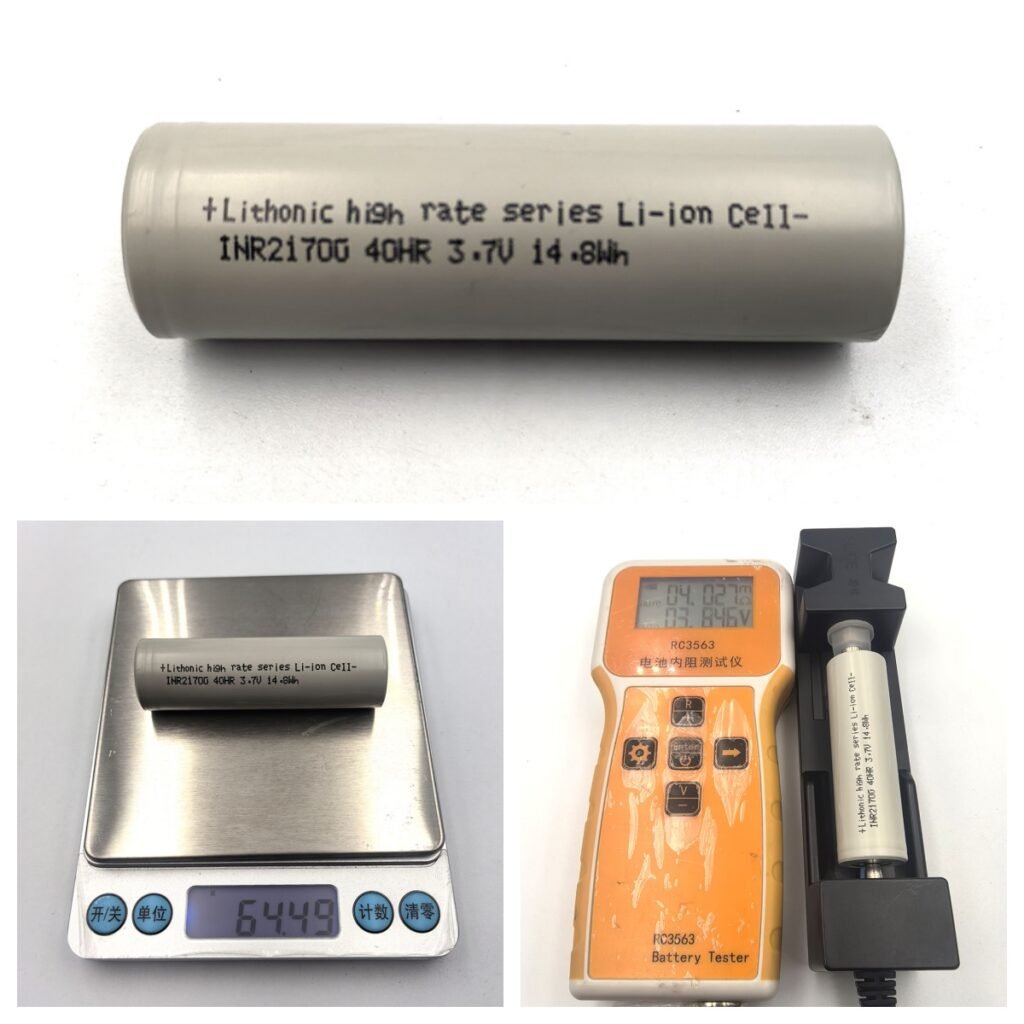

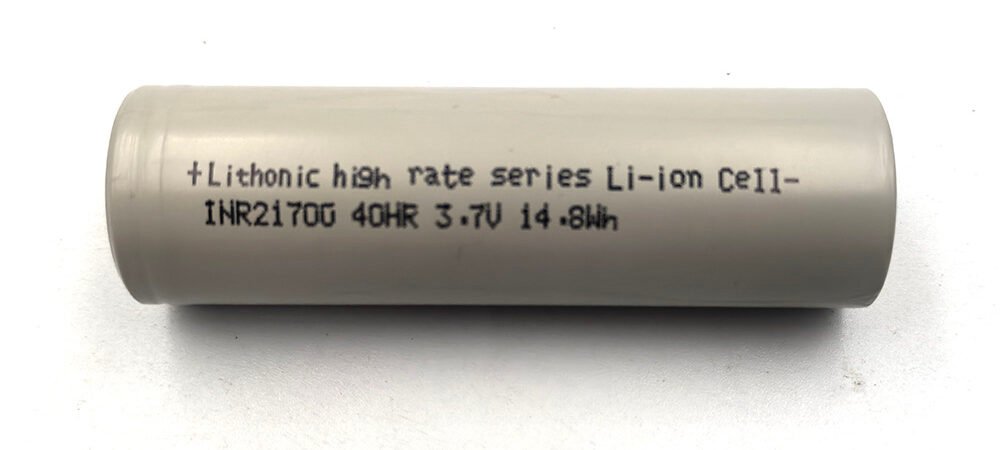

The Lithonic INR21700 40HR lithium cell delivers 70A peak discharge and 60A continuous current with 95%+ capacity retention, ultra-low 4-6mΩ internal resistance, outperforming all competitors:
- Vs Samsung 40T: 60A continuous discharge crushes 35A limit, lower IR (4-6mΩ vs 10.55mΩ).
- Vs EVE 40P/40PL: 20% higher discharge capability (40A→60A) and 15% less capacity fade.
- Vs Molicel P42A: Superior IR (4-6mΩ vs AC 10mΩ/DC 16mΩ) and stability under extreme loads.
Key Performance Advantages
- Extreme Discharge Capability
- 70A Peak: Ideal for drones and power tools requiring instant burst, surpassing Samsung 40T’s 45A (with OTP).

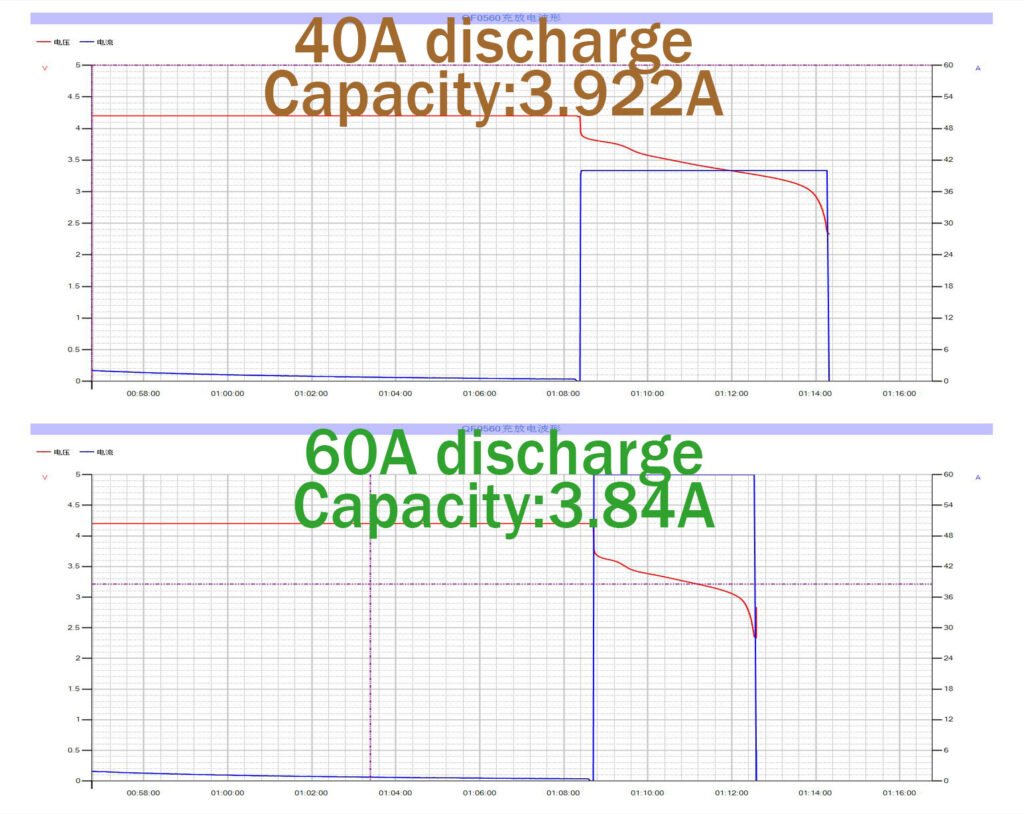

- 60A Continuous: 95% capacity retention with only 32.6℃ temperature rise, 20% cooler than rivals.
- Ultra-Low IR Technology
- 4-6mΩ: 40% less energy loss, extended runtime, and fast charging (1.5C full charge in 1h2min).
- Military-Grade Thermal Control
- Full Tabless Design: Reduces electron path, improves heat dissipation by 50%, stabilizes temperature at 28-32℃.
- Multi-Layer Cooling: 5-10℃ lower than competitors under high drain.
- Durability & Versatility
- 300 cycles with ≥60% capacity, operates from -20℃ to 60℃, perfect for solar storage and EVs.
Competitive Benchmarking
| Parameter | Lithonic 40HR | Samsung 40T | EVE 40P | Molicel P42A |
|---|---|---|---|---|
| Max Continuous Current | 60A | 35A | 40A | 40A |
| Internal Resistance (mΩ) | 4-6 | 10.55 | 12 | 16 (DC) |
| 60A Capacity Retention | ≥95% | N/A | ≤90% | N/A |
| Fast Charge (1.5C) | 1h2min | N/A | 2h17min | N/A |
Applications
- Industrial: AGVs, solar storage systems (28℃ temperature control).
- Consumer: Racing drones, e-bikes (supports 10C instant discharge)
